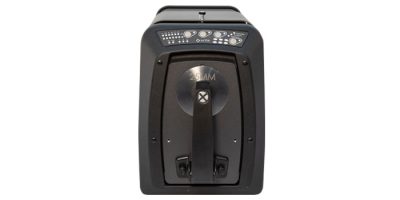

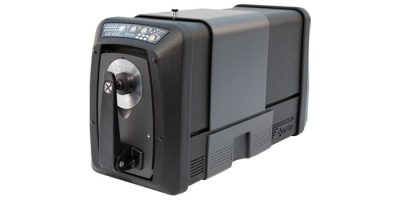

Ci7860 Sphere Benchtop Spectrophotometer

  • For the Most Accurate and Precise Measurement
  • Ideal for digital color standard generation
  • Offers ≤0.06 dE* inter-instrument agreement and ≤0.01 dE*repeatability
  • Provides measurement flexibility with switchable reflectance and optional transmission apertures
  • Versatile Control for Opaque, Transparent, Translucent, and Brightened Samples
  • Ensure Operator Confidence and Maximize Productivity
  • Best-in-Class Global Service and Support

Description

Model: Ci7860

Brand: XRITE PANTONE

Creating standards requires the most advanced color measurement instrument available. The Ci7860 delivers 25% tighter specifications than any other industrial instrument, consuming less of the tolerance allocated for color variation with instrument variability. Built-in temperature and humidity sensors ensure the environment is suitable, and embedded NetProfiler status lights verify the device is optimized for each measurement. Standards created with the Ci7860 can be used for each stage of the product development process, from formulation to final production to quality control.

Maintains Performance:

The Ci7000 Series is stable and will notify the operator if calibration is required to maintain measurement accuracy.

Temperature and Humidity Sensors:

Instrument humidity and temperature sensors above the drawer ensure the environment is suitable for measurements.

Total Color Solution:

Pairs with X-Rite formulation, quality control, and quality assurance software to accurately formulate, verify measurement details, pinpoint issues, and optimize device performance.

0 reviews
0
0
0
0
0

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications:

  • Calibration: White, Zero, UV
  • Communication Interface: USB 2.0
  • Dimensions (length, width, height): 56cm, 22cm, 31cm
  • Embedded NetProfiler Support: Yes
  • Humidity: 5% to 85%, non-condensing
  • Illumination Spot Size: 25mm, 17mm, 10mm, 6mm, 3.5mm* (optional)
  • Inter-Instrument Agreement: 0.06 ΔE*ab avg.
  • Internal Temperature & Humidity Sensor: Yes
  • Lamp Life: ≥1,000,000 measurements
  • Laser Transmission Targeting: Yes
  • Light Source: Pulsed Xenon, D65 calibrated
  • Measurement Cycle Time: ≈ 2.5 seconds
  • Measurement Geometry: d/8°
  • Measurement Spot: 19mm, 10mm, 5mm, 2.5mm
  • Measurement Time: ≈ 2.5 seconds
  • Operating Temperature Range: 5°C to 40°C
  • Optional UV Filters: 400, 420, 460
  • Package Dimensions (length, width, height): 71cm, 38cm, 53cm
  • Photometric Range: 0 to 200%
  • Photometric Resolution: 0.001%
  • Reflectance Aperture(s): 4 std / 1 optional
  • Sample Preview: Door and Video
  • Service Indicator Status: panel
  • Shipped Weight: 25kg
  • Short Term Repeatability: White .01 ΔE*ab RMS on white ceramic
  • Software Development Kit: XDS4
  • Spectral Analyzer: 2D CCD array holographic grating
  • Spectral Interval: 10 nm (default); 5nm; 20nm
  • Spectral Range: 360-780 nm
  • Spectral Reporting: 10 nm (default); 5nm; 20nm
  • Status Panel: Yes
  • Storage Temperature Range: -20° to 50°C
  • Transform Support: Embedded
  • Transmission Aperture(s): 4
  • Voltage: 100 to 240 VAC / 50 to 60Hz
  • Warm Up Time: None
  • Warranty: 12 months
  • Weight: 20.5kg
  • What's Included: Instrument with white calibration standard, black trap, green standard, UV cal standard, Aperture plates, manual(CD), AC adapter, USB cable
