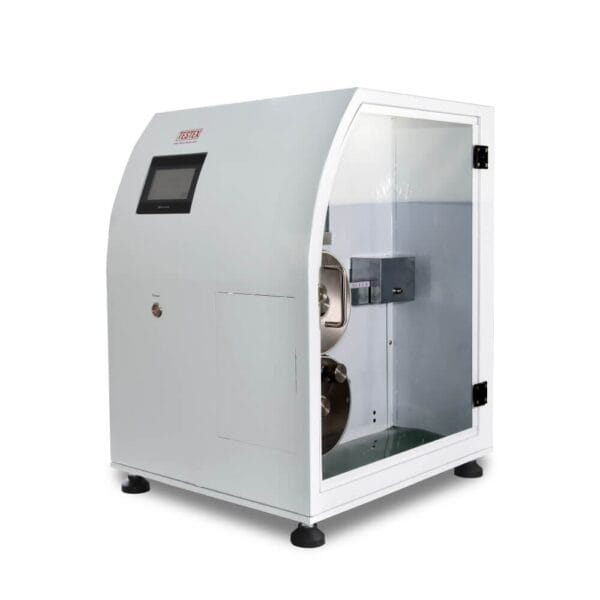

Seat Seam Fatigue Tester
Description
Model: TF152B
Brand: TESTEX.Â
Seat Seam Fatigue Tester is mainly used to test the seam fatigue (dynamic or static) of automobile interior materials such as fabric or leather. This fatigue test is determined by simulating the real vibration when driving.
Colorful touch panel is equipped to set and control tests, and displays the test cycles, time, etc.
Precision guide rod and servo motor driving makes the movement uniform.
A transparent protective cover is equipped to observe the test process clearly, and machine stops once it is opened.
High quality metal paint shell, metal buttons with long life.
The 4 groups of samples can be tested at the same time, or individually.
Only logged in customers who have purchased this product may leave a review.
Specifications
- Load          29.4N ± 0.2N (3 kgf)
- Test speed     30 cpm
- Test stroke     150 mm
- Work stations   4
Power
| 220 /110 V | 50/60 Hz |
Weight
| 100Kg |
Dimensions
| 940 x 350 x 500mm (L x W x H) |
Standards
| JASO M403 | SES N3294 | TSL 2100G |
| SAE J1531 | GMW 3405 |
