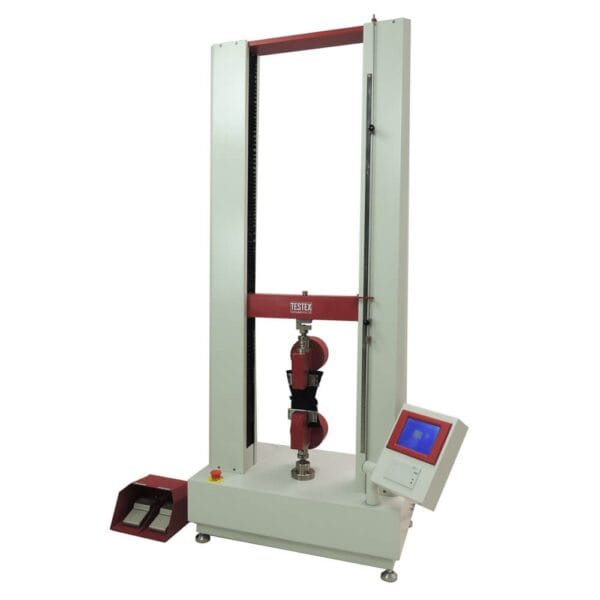

Textile Tensile Testing Machine SC
Textile Tensile Testing Machine is designed to test a wide range of materials in tension, bursting, tear, elongation, constant load, elastic, thread slip, peeling and other mechanical properties. Tensile Strength Tester complies with ISO 13934.1/2, ISO 13935.1/2, ISO 9073.3/4, etc.
Description
Model: TF001
Brand: TESTEX
A PC-controlled machine equipped with motor and quality ball-screw for ideal and smooth control. The machine talks directly with a PC running a data analysis software package in English or Chinese, via a high speed RS232.
Equipped with a quality load-cell with an accuracy of 0.2% of the applied load value, from 1% to 100% of the load-cell capacity.
The machine has a huge assortment of specimen grips and fixtures available, allowing the wide range of test methods. Automatic pneumatic fixtures / clamps are offered
Only logged in customers who have purchased this product may leave a review.
Specifications
| Test Capacity | 2500N |
| Load Measurement Accuracy | +/-0.2% (1% ~ 100% FS) |
| Resolution Of Load | 0.1N |
| Displacement Resolution And Accuracy | 0.01mm |
| Speed Range And Accuracy | 0.01 ~ 1000mm/min, error +/-2% |
| Operating Temperature Range | 0 ~ 38 ℃ |
| Storage Temperature Range | -10 ~ 45 ℃ |
| Humidity Range | 10% ~ 90% non-condensing (web bulb method) |
| Sample Holder | Pneumatic clamping |
| Displacement Alarm System | Yes |
| Mini-Printer (built-in) | Yes |
| Screen | LCD |
| Processor | High Speed RS232 |
| Weight | 100 Kg |
| Dimensions | 680 x 580 x 1640 mm (L x W x H) |
| Power | 220/110 V AC 50/60 Hz (*Power can not exceed 10% of rated voltage peak and surge) |
Optional Accessories
Different standards and testing methods require different options, we can provide you with over 100 kinds of clamps, clips and sensors, so you don’t have to waste your time to choose and purchase elsewhere:
| Clamp | Manual, pneumatic and so on |
| Clip | Different sizes |
| Sensor | Different measuring range |
*For more details, please contact with us.
