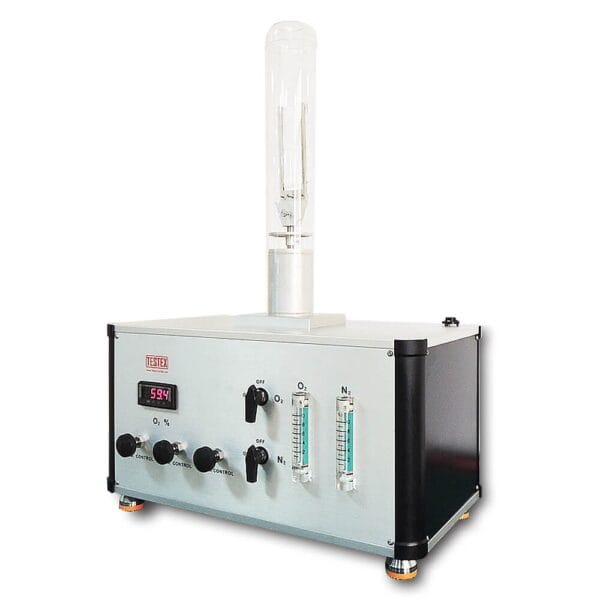

Oxygen Index Tester
Oxygen Index Tester

UL94 Horizontal & Vertical Flammability Tester

UL94 Horizontal & Vertical Flammability Tester, used to determine the flammability of plastic materials for parts in devices and appliances. UL94 Horizontal & Vertical Flammability Tester complies with UL HB, UL94, IEC 60695-11-10, etc. The vedio of UL 94 flammability test procedure is attached in this web page.
Add to wishlist
Add to compare
Category:
Download Brochure

Description

Model: TF328

Brand: TESTEX

Application

UL94 Horizontal & Vertical Flammability Tester, used to determine the flammability of plastic materials for parts in devices and appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications

  • A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.
  • Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
  • Specimen holders.214
  • Fully adjustable horizontal and vertical specimen supports.
  • A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
  • Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
  • A burner wing tip.
  • Three digital test duration timers for accurate but simplified operation

Weight

180 kg

Power

220/110 V50/60 Hz

Dimensions

Length:1200 mmWidth:600 mmHeight:1400 mm

Standards

UL HBUL 94 V0UL 94 V1UL 94 V2UL 94 5VA
UL 94 5VBUL 94 VTM-0UL 94 VTM-1UL 94 VTM-2UL 94 HF-1
UL 94 HF-2UL 94 HBFIEC 60695-11-10IEC 60707ISO 1210
ISO 9770ISO 9772ISO 9773GB/T 2408GB/T 8332
