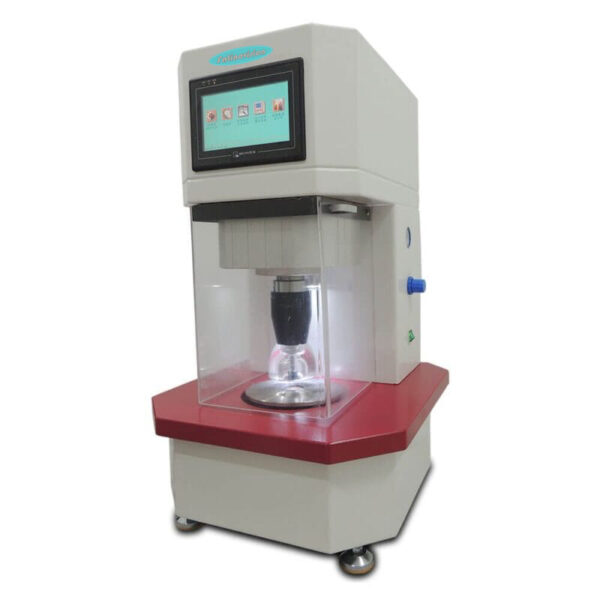

Pneumatic Bursting Tester
Pneumatic Bursting Tester
Back to products
Pilling assessment viewer (PAV)
Pilling assessment viewer (PAV)

Auto Burst: Bursting Strength Tester TF142A/B

Bursting Strength Tester is used to test the strength of bursting for fabric. When you do the bursting test, Mullen burst tester is a wise machine for you. We provide digital bursting strength tester with favorable price.
Add to wishlist
Add to compare
Categories: ,
Download Brochure

Description

Model: TF142A/B

Brand: TESTEX

Application

Auto Bursting Strength Tester, to test the bursting strength of paper, woven or knitted fabrics, non-woven, fabric and board by the of hydraulic load under a Mullen tester diaphragm of a specific area.

Digital bursting strength apparatus provides with a digital readout of pressure with peak hold facility, renewable rubber diaphragms. Automatic clamping device with clear acrylic bell, an LED lamp are equipped for easy observation.

Provided with Windows based Bursting Strength Testing software, it gives accurate control of the unit, user friendly interface and presentation of test reports together with data storage and retrieval.

Interchangeable test bells and clamping ring sets 7.3cm2 (Φ30.5mm), 10cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100cm2 (Φ112.8mm).

Bursting strength testing machine is provided with three test methods, Constant speed bursting, Certain pressure bursting and Certain extension.

Models

  • TF142A 2000 kPa  (290 psi)
  • TF142B  10000 kPa (1450 psi)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications / Features

  • High-accuracy servo-motor driving system
  • Automatic-clamping offers firm and reliable clamping
  • Large colorful touch panel, can be operated without computer
  • Automatic induction and bursting system, can be connected with computer and printer, test curve, test result is easy to output and read.
  • Equipped with memory and printing function, supporting on-line operation.
  • Resolution 2Kpa
  • Test Head and Clamp: 50cm2(Φ79.8mm), 7.3cm2(Φ30.5mm), the other sizes are available on request.Weight
    170 kg

    Power

    220/110 V50/60 Hz

    Dimensions

    Width:450 mmLength:620 mmHeight:530 mm

    Standards

    ASTM 3786-06ISO 2758ISO 13938-2BS 3424
    BS 3137BS 4768AS 2001.2.4GB/T 7742
    IWSTM 29EDA NA 80.4-02EDA NA 80.3-99BS 2922
    FZ/T 60019JIS L 1018.6.17NEXT 22 2206FZ/T 01030
