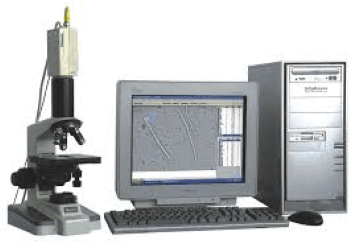

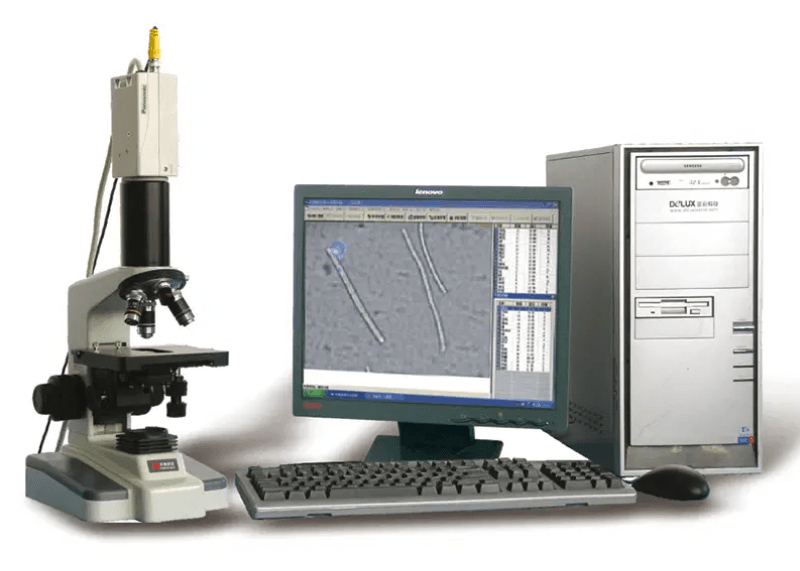

YG(B)002-6 Fiber Fineness Comprehensive Analyzer (Microscope + PC)

Description

【Related Standards】
GB/T 10685-2007 “Test Method for Diameter of Wool Fibers – Projection Microscope Method”

GB/T 20732-2006 “Optical Analyzer for Fiber Diameter”

GB/T 3364-2008 “Test Method for Diameter and Number of Carbon Fibers”

FZ/T 01057.3-2007 “Experimental Methods for Identification of Textile Fibers – Part 3: Microscope Method”

AATCC 20-2013 “Qualitative Analysis of Fibers”

IWTO-47-2009 “Regulations for Measuring the Average Diameter of Wool Fibers and Their Distribution by Optical Fiber Diameter Analyzer”

IWTO-8-2004 “Method for Measuring the Diameter Distribution of Wool Fibers and Other Animal Fibers and the Percentage of Medullation by Projection Microscope”

ISO 137:2015 “Determination of Fiber Diameter – Projection Microscope Method”

GB/T 12412-2007 “Yak Hair”

GB/T 9998-2006 “Xining Wool”

GB/T 18267-2013 “Goat Hair”

GB/T 16988-2013 “Special Animal Fiber and Cotton/Wool Blend Content Determination”

GB/T 16254-2008 “Marine Hair”

GB/T 13835.6-2009 “Rabbit Hair Fiber Fineness Test Method”

GB/T 21977-2008 “Camel Hair”

FZ/T 30003-2009 “Quantitative Analysis Method for Mixed Products of Hemp and Cotton by Microscopic Projection”

FZ/T 32004-2009 “Natural Color Yarn of Linen and Cotton”

SN/T 0756-1999 “Quantitative Analysis Method for Imported and Exported Hemp/Cotton Mixed Products by Microscopic Projection”

ISO 17751-1:2016(E) “Microscopic Quantitative Analysis of Animal Fibers – Yak Hair, Wool, Other Animal Fuzz and Their Mixtures”

FZ/T 01101-2008 “Identification of Textile Fibers – Physical Method”

AATCC 20A-2014 “Regulations for Quantitative Analysis of Fibers”

FZ/T 50002-1991 Test the Anisotropy and Hollow Degree of Special Fibers

【Function Overview】

*1. National standard measurement range 2 – 200 μm, instrument measurement range 1 – 2000 μm;

*2. Data correction function, full sample image archiving function;

*3. Data and reports output in EXCEL format, report format and statistical method can be changed according to user requirements (standard provided);

*4. New development of personalized interface, customizable observation magnification;

*5. Automatic calibration of scale, minimizing operational error;

*6. Dynamic measurement for diameter experiments and content experiments, retaining the measurement marks of the current field of view, significantly improving measurement speed and accuracy;

*7. Observing the cross-sectional morphology of various chemical fibers, special fibers, and hollow fibers and measuring the cross-sectional area;

*8. Measuring the anisotropy and hollow degree of special fibers in accordance with textile industry standards;

*9. Obtaining the fiber content of various blends through the analysis of the cross-sectional morphology and area measurement of individual fibers in blended products;

*10. User-defined fiber types;

*12. Providing a fiber sample library, with more than 50 types of fiber varieties.

*13. Equipped with a non-decolorization accessory, enabling direct observation of dark-colored fibers.

【Microscope Parameters】
(Domestic) MOTIC B1 (0.5x interface, objective lenses: 10X, 20X)

【Camera Parameters】 210D digital camera

1: Maximum resolution 3840*2160

2: Uses imported chips, USB 3.0 or higher interface

3: Target size 1/1.2, pixel size 2.9*2.9

4: Maximum 45 frames per second

【Accreditation for Measurement】

Micrometer equipped with the test report provided by the Chinese Academy of Science for Metrology and the inspection and certification of China Textile Standardization and Certification Co., Ltd.

Brand : fatinovision
